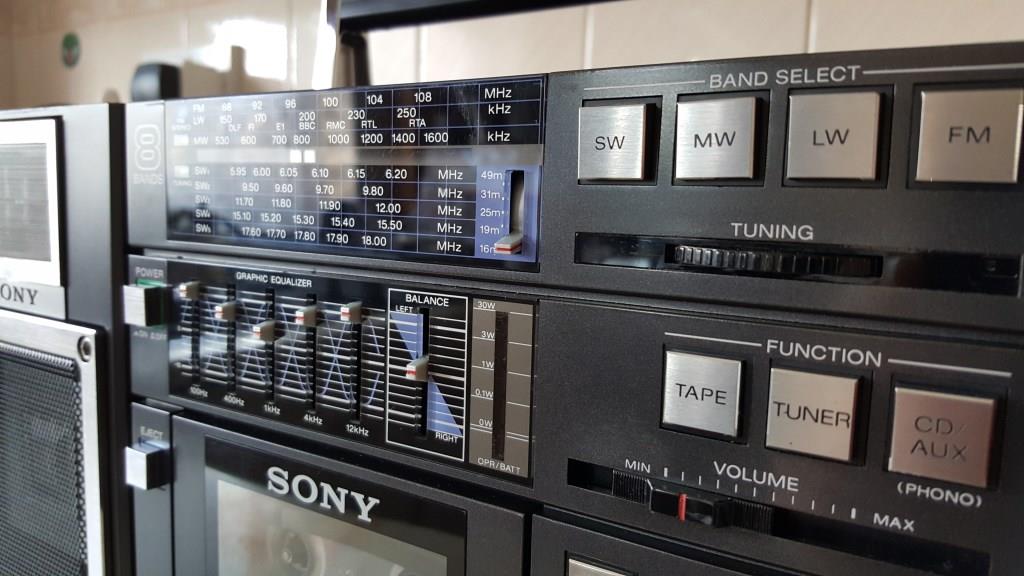

    Always liked the look of these a bit like a mini FH-7, wanted one for a while but been waiting for a really nice cosmetic condition one, this one is nice :biggrin:
    So gave the outside a good clean, it was covered in a white dust looked like lint? so guessing it was bedside radio, which explains the good condition.
    took it apart to clean dust from the inside and sort the deck.

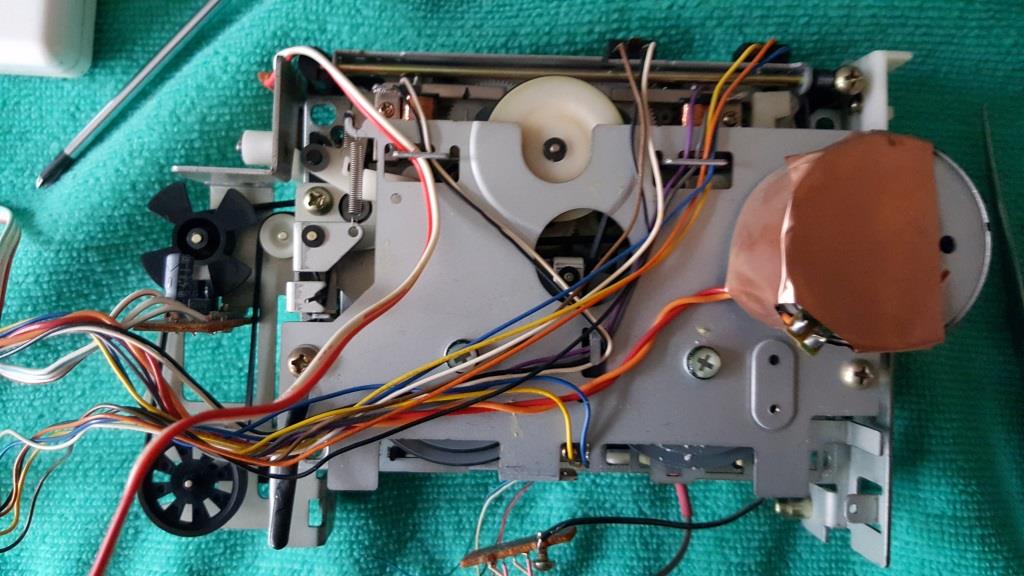

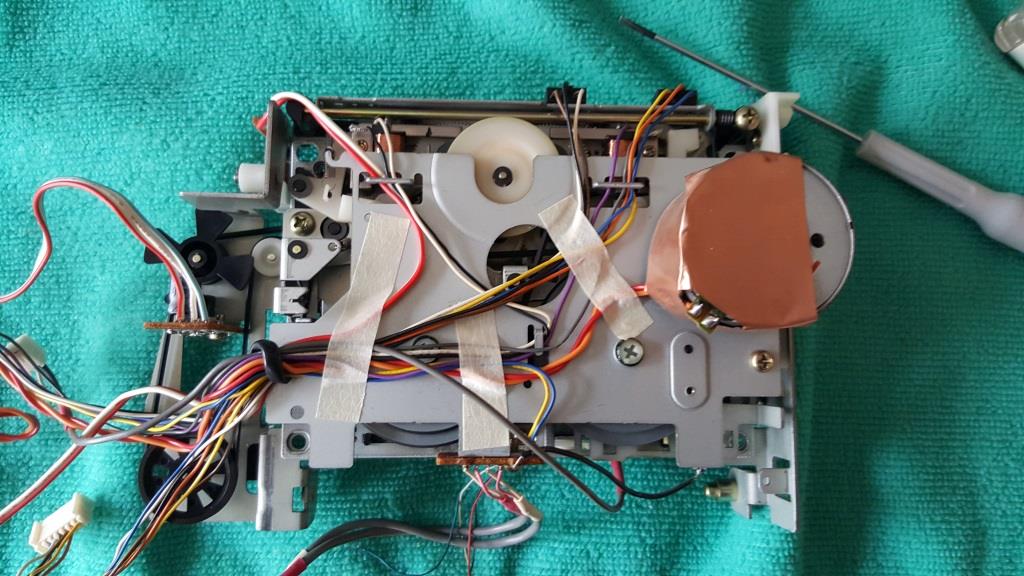

    With the back and front removed the deck is easy to remove just four screws and a lot of plugs.

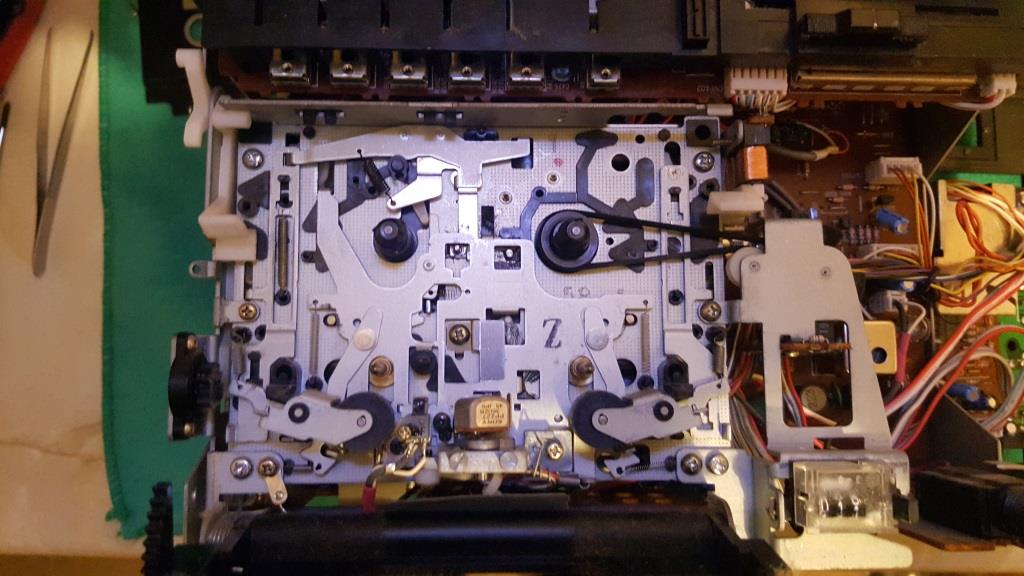

    With the deck out I could see that the belts had gone hard, but there was another problem?
    More on that problem later, change the belts first there's two main belts and the counter belt this is important as it's also used for the auto stop detector rotation.




    There's a handy little hook to put the main belt on so when you put back plate on you can just lift it on to the motor pulley, thank you Sony.

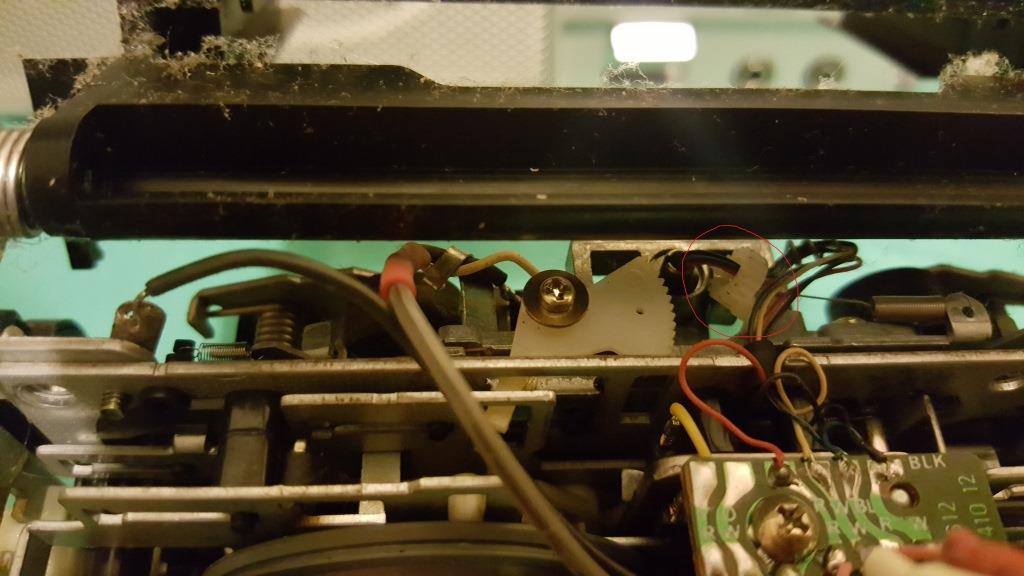

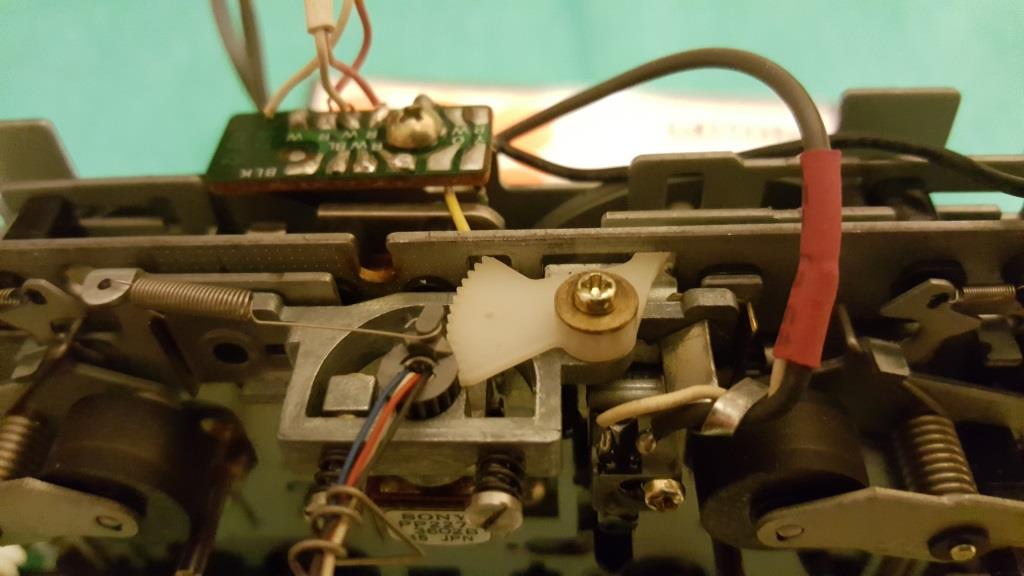

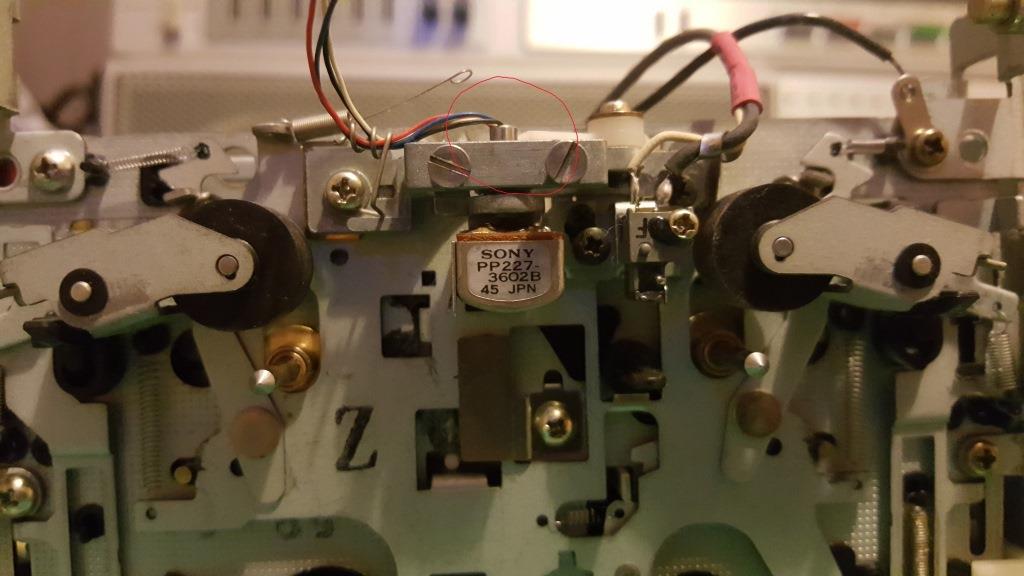

    Belts done now the other problem, in the photo below (circled) you can just see the small white gear that rotates the head for forward and reverse. This should be on the metal shaft that protrudes from the head block, but clearly isn't where it should be.


    The next photo shows more clearly what's happened and there's a crack in the gear.

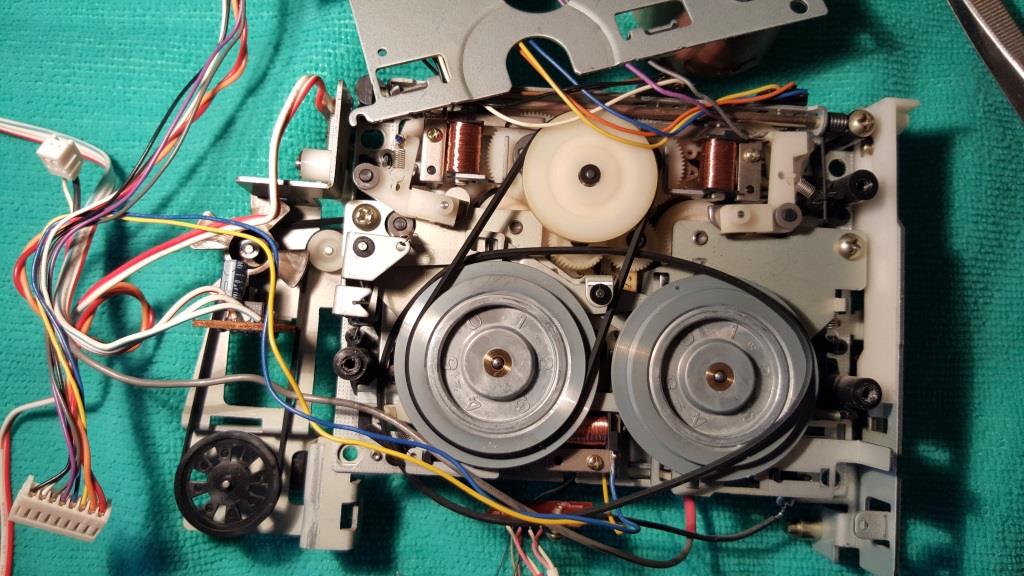

    With the gear removed it's a bit more than just a crack there's also a piece missing, on both my FH-7's this gear was also cracked, but no parts missing so I just epoxied them on to the shaft which worked well, I can't do this on this one because of the missing part. I thought about just locking the head in it's forward position, this would've been interesting because in reverse that side would be played backwards.


    I was thinking about how to repair this as I wanted the deck to work as it should, it was then that I realised I'd seen this same mechanism in another of my Sony boxes, but which one :scratch2:

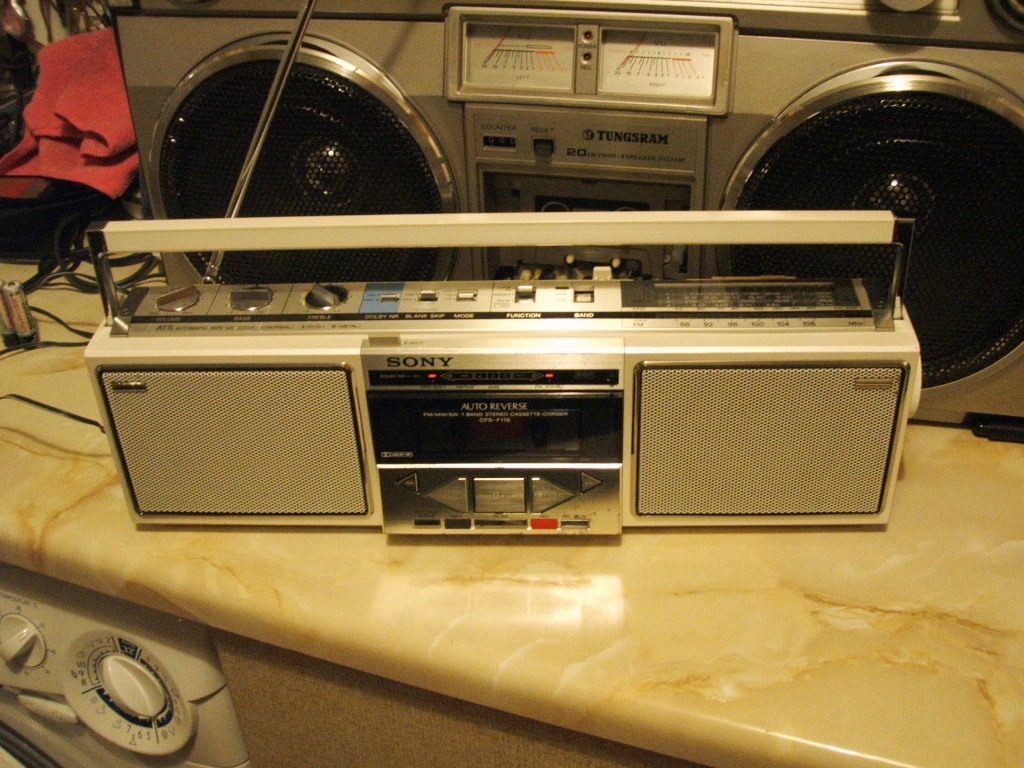

    Then I suddenly remembered which box it was the tiny Sony CFS-F11S :yahoo, amazing that this very small Sony has the same mechanism!

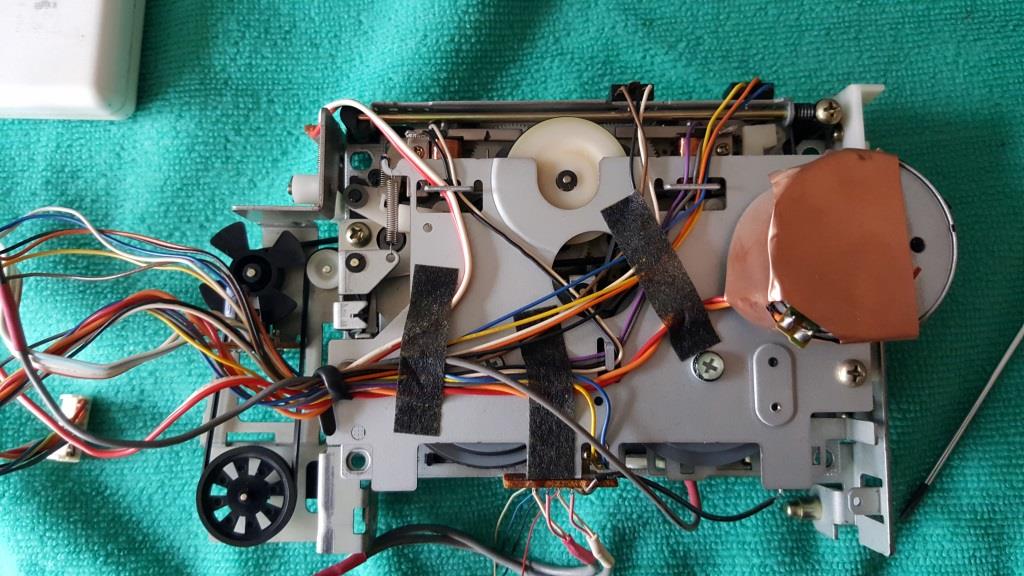

    Anyway this was already in pieces awaiting repair as the head was missing, now I know where to get one just that gear will be a problem.

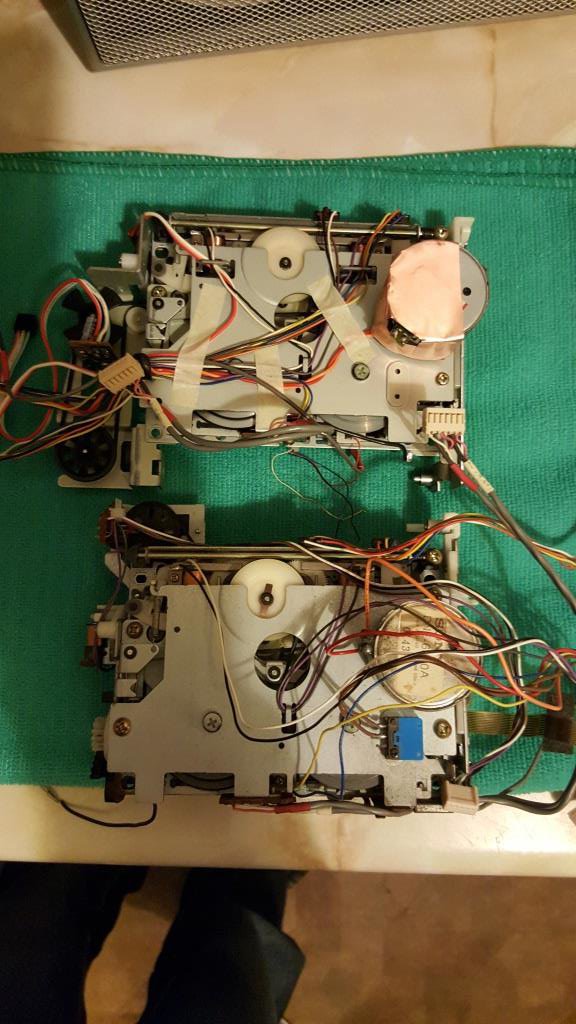

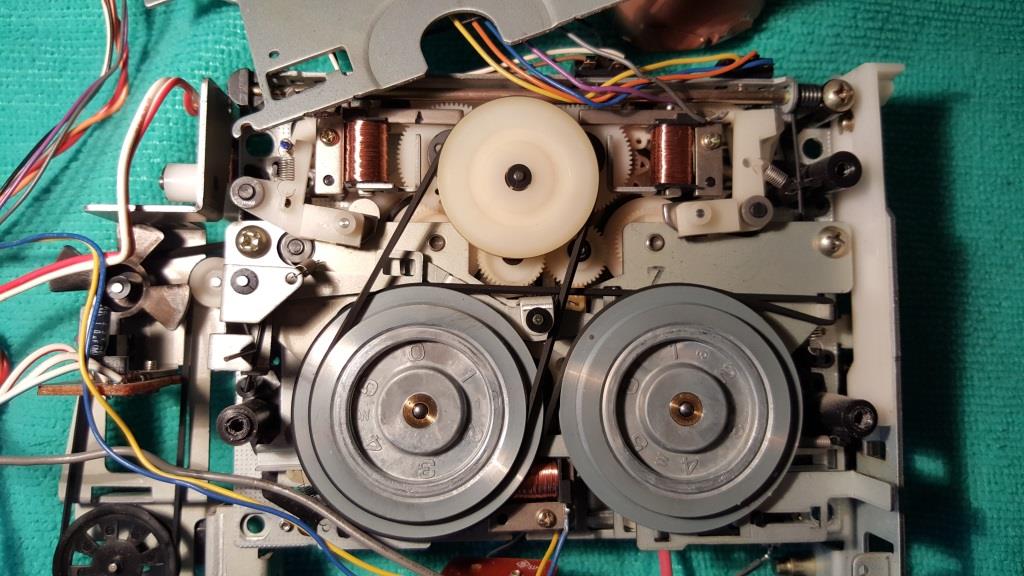

    The two mechanisms side by side.


    So to cut a long story short the same gear was removed from the CFS-F11, it's made from a very different plastic and grey looks much stronger, maybe an update by Sony because of problems with that gear.

    New gear fitted


    Temporally put the repaired mechanism back in the CFS-9000 and it worked perfectly, very pleased.

    Now to sort the speakers both main front grills were loose and more white dust.

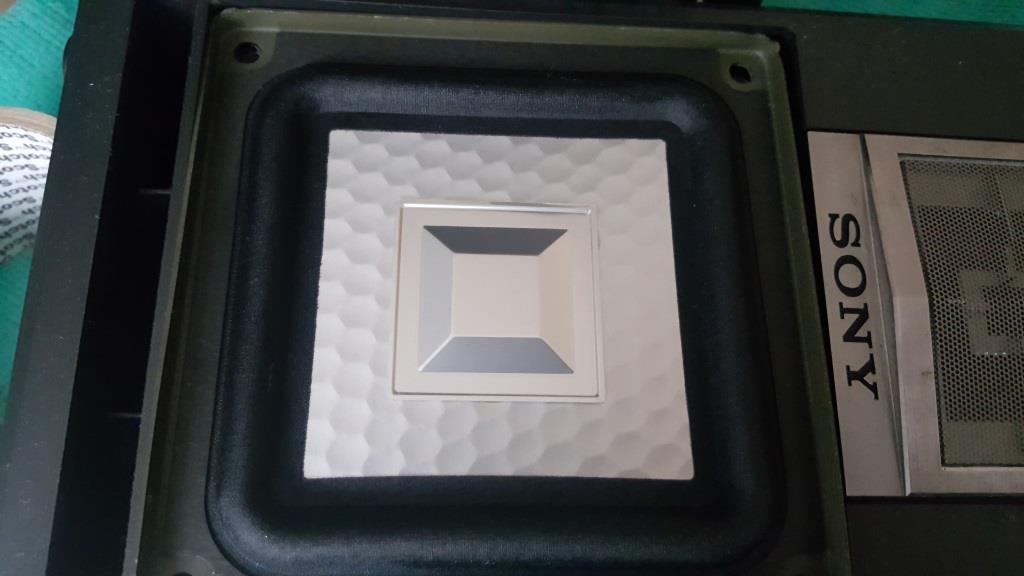

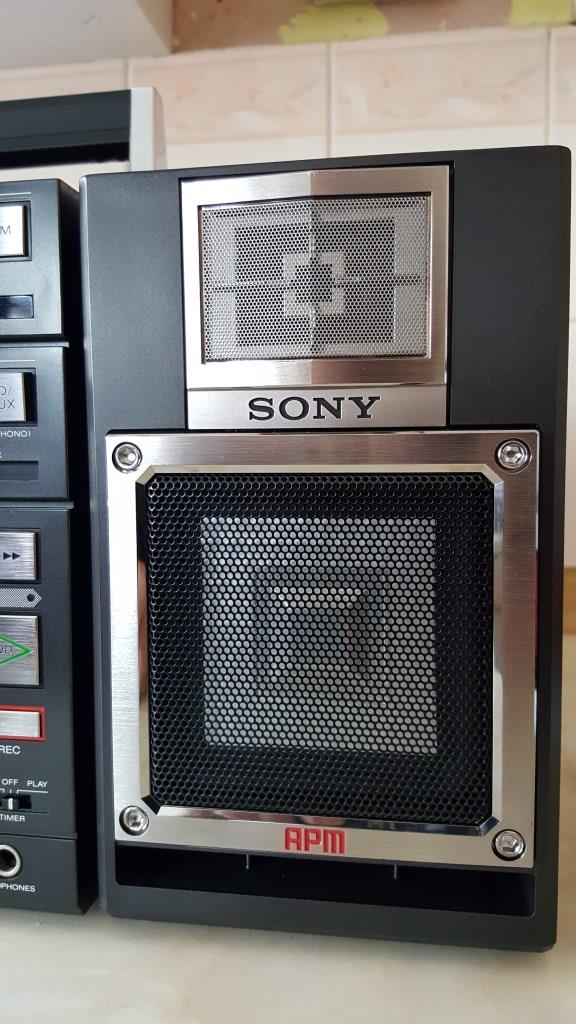

    Re-glued the grills back on the APM trims and cleaned up the speakers.

    Put it all back together a final test perfect :biggrin:

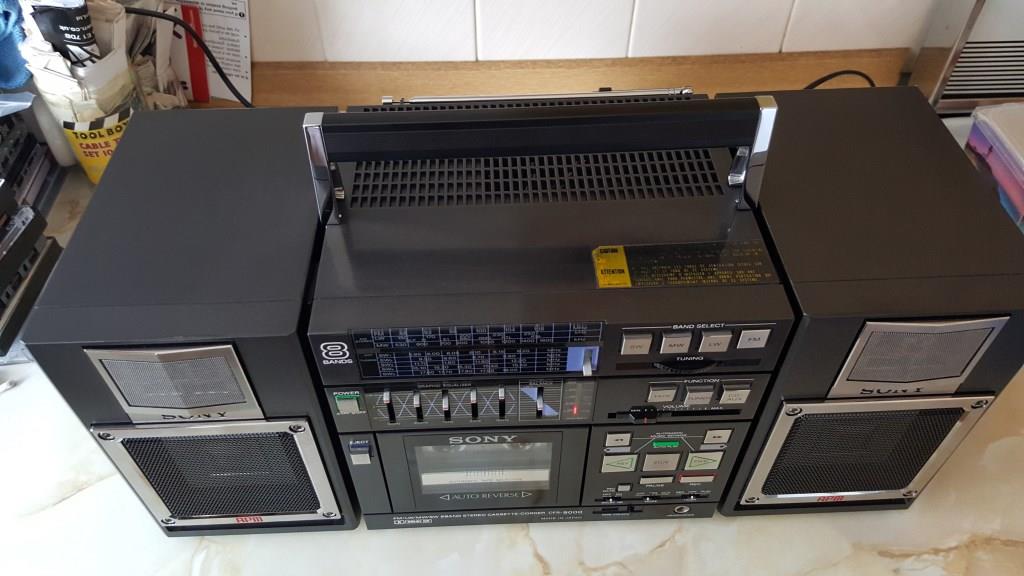

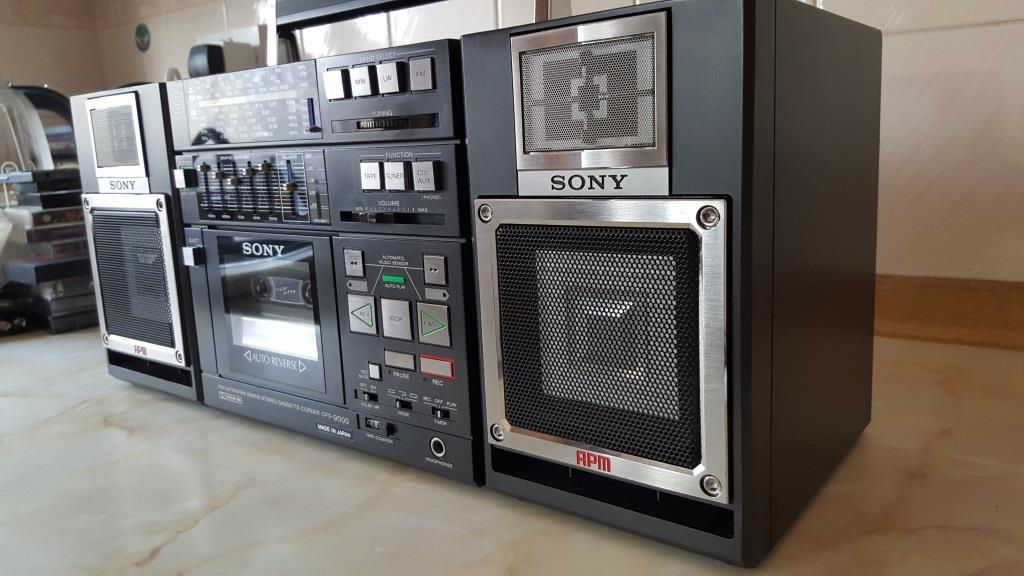

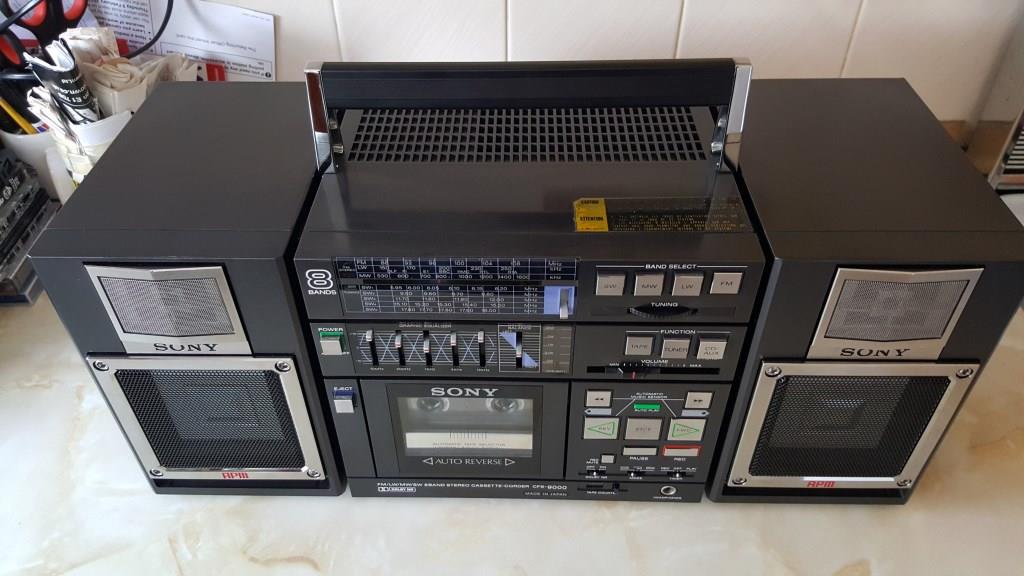

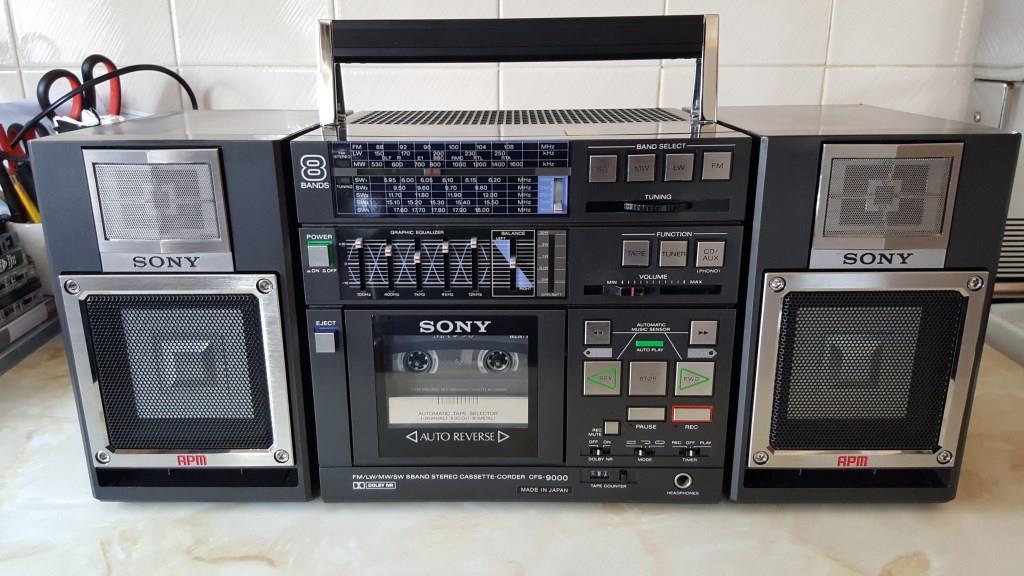

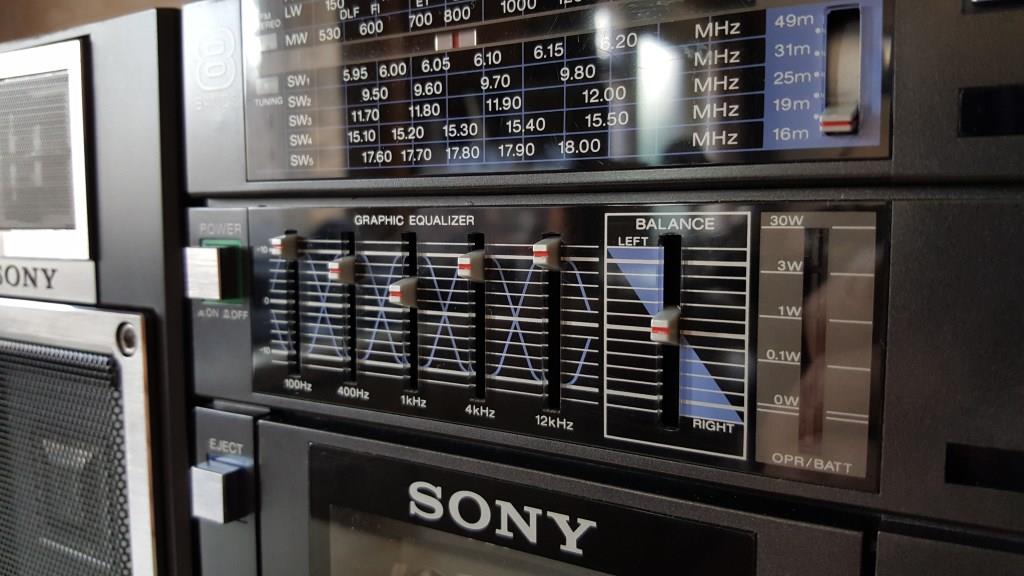

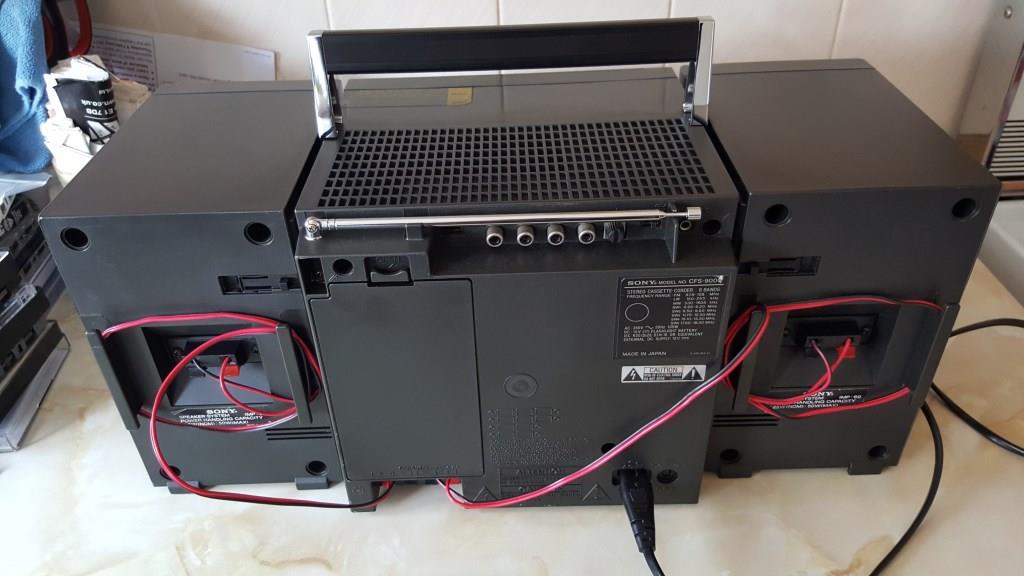

    Here's the end result, very nice indeed.











    Attached Files:

    • 6.jpg
      File size:
      71.8 KB
      Views:
      741
    Last edited: Feb 13, 2017
  2. T-ster

    T-ster Moderator Staff Member S2G Supporter

    Messages:
    1,455
    Trophy Points:
    113
    Location:
    England
    Damn thats a great resto, handy having that lil Sony available for parts, you made that look easy.

    Very nice looking Sony and i bet the sound is cracking. :thumbsup:

  3. Deliverance

    Deliverance Active Member

    Messages:
    369
    Trophy Points:
    43
    Location:
    United Kingdom.
    A nice Sony .

  4. Radio Raheem

    Radio Raheem Well-Known Member

    Messages:
    1,951
    Trophy Points:
    113
    Location:
    uk
    yea nice sony, i had one but im not sure where she went, cracking job mate

  5. nickeccles

    nickeccles Well-Known Member

    Messages:
    642
    Trophy Points:
    93
    Location:
    Littlehampton West Sussex
    Excellent Job :thumbsup: :thumbsup: :thumbsup:

  6. Mystic Traveller

    Mystic Traveller Well-Known Member

    Messages:
    1,767
    Trophy Points:
    113
    Location:
    St. Petersburg, Russia - Oxford, GB
    Super! :thumbsup:
    This Sony is the looker! :nodding: Love FH series.

  7. Longman

    Longman Well-Known Member S2G Supporter

    Messages:
    3,654
    Trophy Points:
    113
    Location:
    Bournemouth UK
    Great clean up it looks brand new.

    An impressive number of Shortwave bands for a boombox too.

  8. superlew

    superlew Member

    Messages:
    73
    Trophy Points:
    18
    Location:
    Wu-City, MA
    Great work! :thumbup: Broken gears are one of the biggest P's ITA. I've thrown in the towel on few few decks for that reason.
    Gorgeous Sony. Passed up on a local CFD-5 for relatively cheap - Just wasn't doing it for me at the time. I'm kinda regretting it now.

  9. mrp32Dave

    mrp32Dave Well-Known Member

    Messages:
    276
    Trophy Points:
    63
    Location:
    United Kingdom

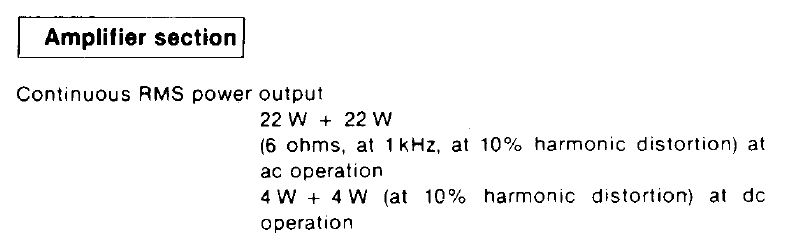

    Sounds very nice amazing bass, but only on mains power on battery power it has a much lower output. here's the specs:
