how to calibrate speed of moretech motor?

Discussion in 'Tech talk' started by Raemin, Oct 22, 2026 at 10:31 AM.

  1. Raemin

    Raemin New Member

    Messages:
    5
    Trophy Points:
    3
    Location:
    Lyon - FR

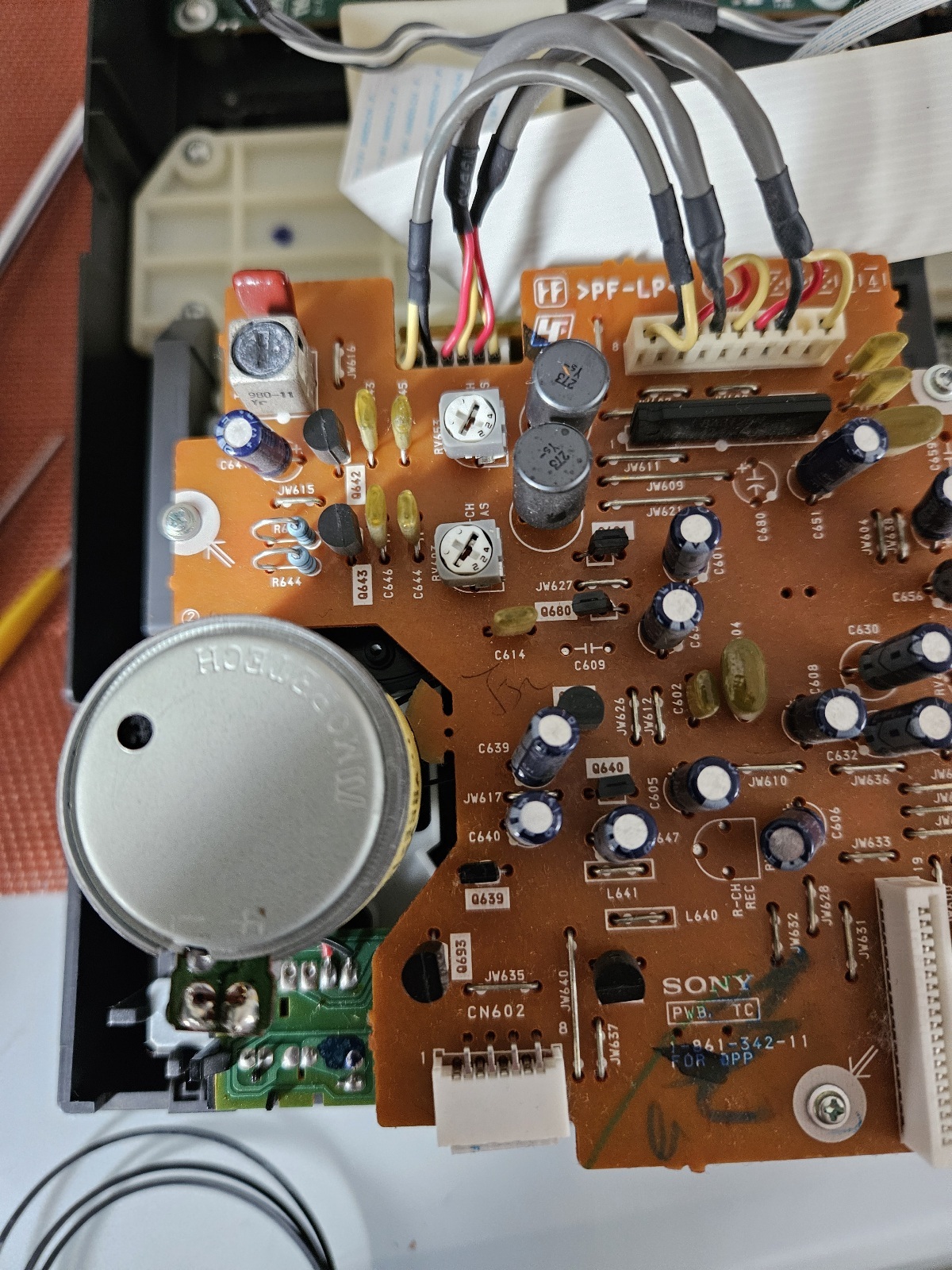

    Two of my Sony units have these motors. The manual specifies that the speed can be adjusted from the back of the motor itself, not from a separate potentiometer.

    Unfortunately the hole in the back is "plugged" with some kind of rubber/glue. How are we supposed to adjust the speed of the motor.

    (My calibration tape generates a 3160 signal, wich is grossly out of spec.)

    [​IMG]

  2. Valentin

    Valentin Well-Known Member

    Messages:
    2,102
    Trophy Points:
    113
    Location:
    Europe
    Assuming there's isn't a separate trimpot on a board (which I don't think is the case given the motor has 2 wires), you have to put a flat screwdriver through that hole and push it until you reach the trimpot inside.
    No worries as it will go through that rubber no problem, it's cut specifically for that.
